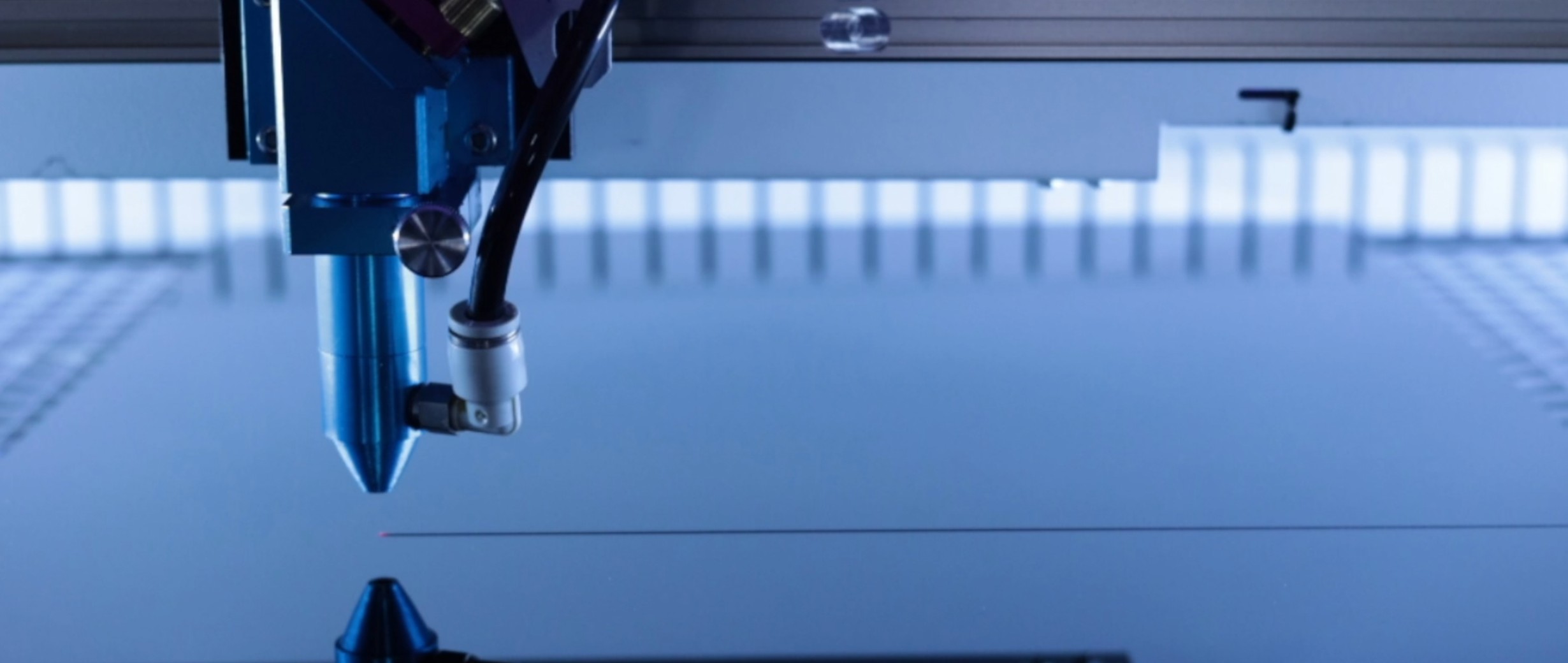

Ranger III

Overview

The Ranger has a powered Z-table with honeycomb bed, which allows better heat dissipation and reduced flashbacks during cutting. It has a built in connection for a 2phase rotary. Its 7813 touchscreen DSP Controller features a colorful display. Common supplemental software includes CorelDRAW, AutoCAD, Illustrator, Inkscape, and more. By supporting file transfer directly over flash drives and other USB media devices, it eliminates the need for an external PC. It also supports LightBurn. LightBurn is a third-party laser software that gives users access to a very intuitive interface allowing them to complete work with little to no training. Ideal for hobbyists, woodworkers, school projects, etc, the default 75-watt tube is powerful enough to cut through 1/2" MDF. Red beam combiner Power z table Easy rotary setup Touchscreen controller Operating voltage: AC110V 60Hz Precision: 0.01mm , resolution: 0.05mm Mirror: 19mm & Lens: 15mm; 20mm red dot combiner Default lens: 50.8F Laserhead supports 65.5Fmm Lens with 21mm new focusing distance. Y axis travel: 380mm Z-table travel: With honeycomb the powered Z space is 5." Without honeycomb but leaving plate the powered Z space is 5.5." Removing honeycomb and powered Z plate space 10." Attaching midsize rotary gives you 4" of Z space. Speed: 600mm/s for X during engraving Cooling: Water chiller is required. SOLD SEPARATELY. Air Exhaust: 3inches connection Woodcutting: up to 1/2 inch Interface: USB port USB memory drive support: Yes PPI support: Yes Micro step panning: Yes Laser machine weight: 180lb Crate Dimension: 47" L x34" Wx 24" H Shipping Weight: 286lbs Support: AI, SVG, PDF, DXF, PLT, DST, DSB, UD5, BMP, JIF, JPG, PNG etc Application supported: CorelDRAW, AutoCAD, Illustrator, Inkscape, and more Warranty: 2 years limited warranty period except laser tube(1 year), optics and mirrors(6 months)
