CO2 Galvo SETTING
Cork Engrave
Shared by [LE] Kyle
Result Photo
Material
- Material
- Cork
- Coating
- None
- Color
- Tan
- Thickness
- Not Applicable
Setup
- Software
- LightBurn
- Repeat All
- 1
- Focus (mm)
- 0-Values Focus Closer | +Values Focus Further
Laser
- Laser Source
- DAVI D60F (D60) (10.6µm)
- Lens Configuration
- Single SL1
- Scan Head Aperture
- 20
- Beam Expander
- 08
- Lens
- F160 / 110x110
Notes

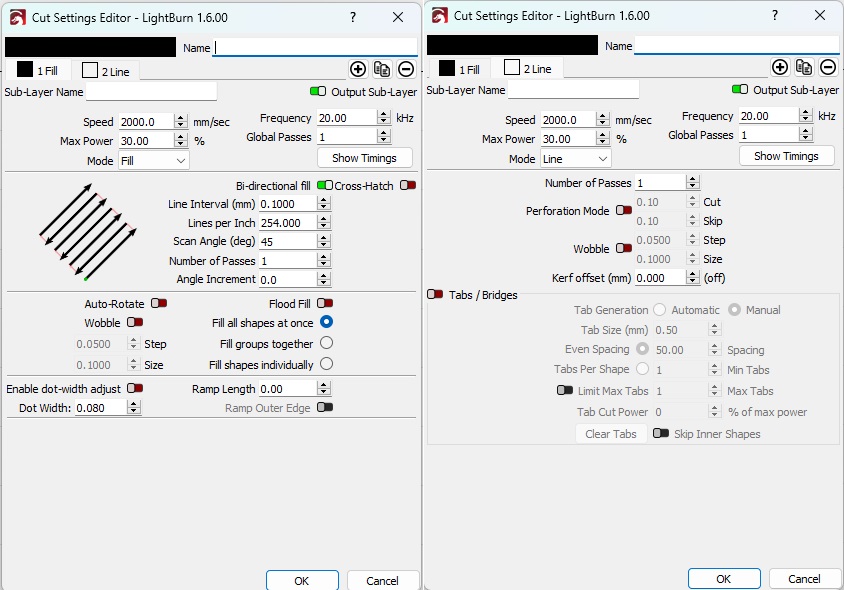

I run this in focus, with the fill pattern first, and will optionally add a sublayer as a contour line if I really want to define the edges. Gives great contrast! No need to defocus.
Fill passes
Mark
- Speed (mm/s)
- 2000
- Power (%)
- 30
- Frequency (kHz)
- 20
- Interval (mm)
- 0.1
- Passes
- 1
- Angle (deg)
- 45
- Type
- Bidirectional
- Crosshatch
- No
- Air Assist
- No
- Flood Fill
- No
