Fiber SETTING

Leatherette with curves - Black on Gold

Shared by [LE] Kyle

Result Photo

Result for Leatherette with curves - Black on Gold

Material

Material
Leatherette (PU)
Coating
None
Color
Black
Thickness
Not Applicable

Setup

Software
LightBurn
Repeat All
1
Focus (mm)
0-Values Focus Closer | +Values Focus Further

Laser

Laser Source
JPT YDFLP-E2-60-M7-M-R
Lens
F420 / 300x300

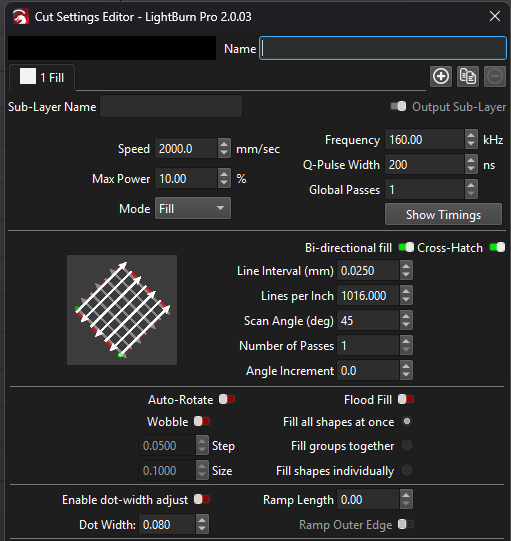

Settings screenshot

Notes

This was specifically tuned to be consistent across wrapped leatherette, such as on tumblers. Since it works on curves, it works really well and consistently on flat leatherette too, like patches. If working across a curve, be sure to average your focus to the center of the average low and high points, typical cylinder correction process. Scan angle shouldn't matter much, as long as you include crosshatch, and use a 300 lens.

Fill passes

Fill

Speed (mm/s)
2000
Power (%)
10
Frequency (kHz)
160
Pulse Width (ns)
200
Interval (mm)
0.025
Type
Bidirectional
Crosshatch
Enabled
Air Assist
Disabled
Flood Fill
Disabled
Auto-Rotate
Disabled
