Fiber SETTING
3D Slice Brass Coin Engraving
Shared by Frank Cox
Result Photo
Material
- Material
- Brass
- Coating
- None
- Color
- Gold
- Thickness
- Not Applicable
Setup
- Software
- LightBurn
- Repeat All
- 1
- Focus (mm)
- 0-Values Focus Closer | +Values Focus Further
Laser
- Laser Source
- Raycus RFL-P50QB
- Lens
- F63 / 50x50
Notes

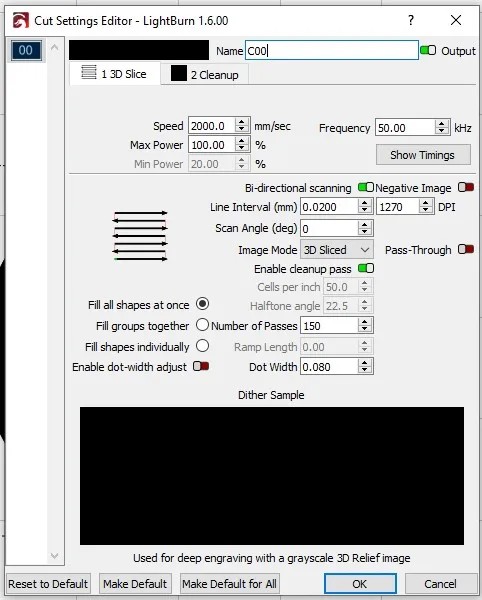

I set this up with the Image Mode called “3D Sliced” and ran 150 passes. I also enabled a cleaning pass after every 10 passes. I use a wire brush on my Dremel to clean it up.
Fill passes
Fill 1
- Speed (mm/s)
- 2000
- Power (%)
- 100
- Frequency (kHz)
- 50
- Pulse Width (ns)
- 200
- Interval (mm)
- 0.02
- Passes
- 150
- Angle (deg)
- 0
- Type
- Bidirectional
- Crosshatch
- Disabled
- Air Assist
- Disabled
- Flood Fill
- Disabled
- Auto-Rotate
- Disabled
