Fiber SETTING

Dog Tag

Shared by eecom

Result Photo

Result for Dog Tag

Material

Material: Aluminum
Coating: Anodizing
Color: Black
Thickness: Not Applicable

Setup

Software: LightBurn
Repeat All: 1
Focus (mm): 0-Values Focus Closer | +Values Focus Further

Laser

Laser Source: Raycus RFL-P50QB
Lens: F160 / 110x110

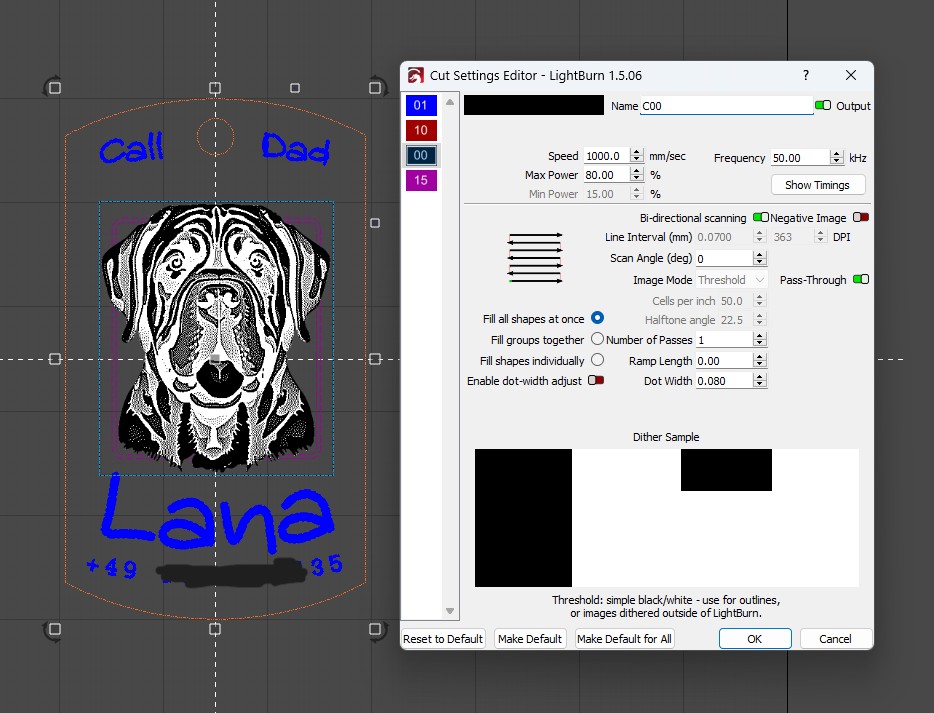

Settings screenshot

Raster passes

Raster 1

Speed (mm/s): 1000
Power (%): 80
Frequency (kHz): 50
Pulse Width (ns): 150
Interval (mm): 0.07
Passes: 1
Type: Bidirectional
Dither: jarvis
Dot-width Adjustment (mm): 0.08
Image Inverted: Enabled
Crosshatch: Enabled
Air Assist: Disabled
