Fiber SETTING
Slate White
Shared by [LE] Kyle
Result Photo
Material
- Material
- Slate
- Coating
- None
- Color
- Gray, Dark
- Thickness
- Not Applicable
Setup
- Software
- LightBurn
- Repeat All
- 1
- Focus (mm)
- 0-Values Focus Closer | +Values Focus Further
Laser
- Laser Source
- Raycus RFL-P50QB
- Lens
- F290 / 200x200
Notes
This Slate White was specific tested for use on a Raycus 50QB source. Flood Fill is optional. In some circumstances it may affect quality, so individual testing may be required, but it has the potential to greatly assist in speed of completion, depends.

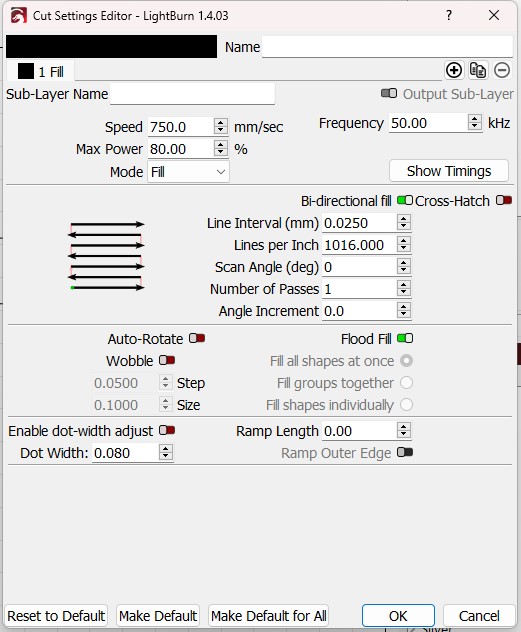

Fill passes
Slate Fill
- Speed (mm/s)
- 750
- Power (%)
- 80
- Frequency (kHz)
- 50
- Pulse Width (ns)
- 130
- Interval (mm)
- 0.025
- Passes
- 1
- Angle (deg)
- 0
- Type
- Bidirectional
- Crosshatch
- Disabled
- Air Assist
- Disabled
- Flood Fill
- Enabled
- Auto-Rotate
- Disabled
