Fiber SETTING

White Marking on Slate

Shared by Tim Rennels

Result Photo

Result for White Marking on Slate

Material

Material: Slate
Coating: None
Color: Gray, Dark
Thickness: Not Applicable

Setup

Software: LightBurn
Repeat All: 1
Focus (mm): -3-Values Focus Closer | +Values Focus Further

Laser

Laser Source: JPT YDFLP-E-60-M7-M-R
Lens: F290 / 200x200

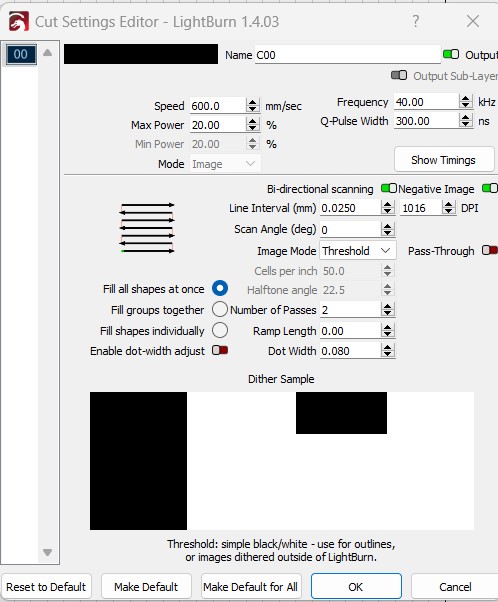

Settings screenshot

Fill passes

Slate Engraving

Speed (mm/s): 600
Power (%): 20
Frequency (kHz): 40
Pulse Width (ns): 300
Interval (mm): 0.025
Passes: 1
Angle (deg): 0
Type: Bidirectional
Crosshatch: Disabled
Air Assist: Disabled
Flood Fill: Disabled
Auto-Rotate: Disabled
