Fiber SETTING
Walnut
Shared by [LE] Alex
Result Photo
Material
- Material
- Walnut
- Coating
- None
- Color
- Brown
- Thickness
- Not Applicable
Setup
- Software
- LightBurn
- Repeat All
- 1
- Focus (mm)
- 0-Values Focus Closer | +Values Focus Further
Laser
- Laser Source
- JPT YDFLP-80-M7-M-R
- Lens
- F420 / 300x300
Notes
This setting includes parameters for Fill 1 and Line Run Fill 1, then run Line for a nice contrasting edge. The line parameter can be added as a sub-layer to the fill in LightBurn. I didn't use an air assist for this but if you have one you probably should.
Fill passes
Walnut Marking
- Speed (mm/s)
- 130
- Power (%)
- 25
- Frequency (kHz)
- 150
- Pulse Width (ns)
- 200
- Interval (mm)
- 0.25
- Passes
- 2
- Angle (deg)
- 45
- Type
- Bidirectional
- Crosshatch
- Enabled
- Air Assist
- Disabled
- Flood Fill
- Disabled
- Auto-Rotate
- Disabled

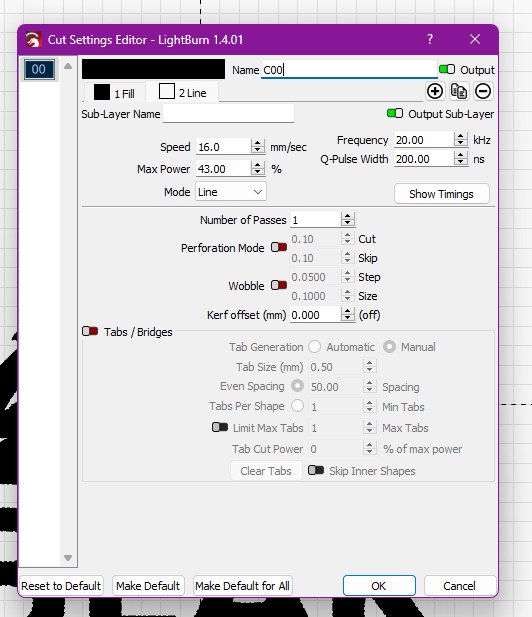

Line passes
Contrast Outline
- Speed (mm/s)
- 16
- Power (%)
- 43
- Frequency (kHz)
- 20
- Pulse Width (ns)
- 200
- Passes
- 1
- Air Assist
- Disabled
