Fiber SETTING

Cut Silver 1.3 - 1.8mm

Shared by Improntus

Result Photo

Result for Cut Silver 1.3 - 1.8mm

Material

Material: Silver
Coating: None
Color: Silver
Thickness: 1.8 mm

Setup

Software: LightBurn
Repeat All: 10
Focus (mm): 0-Values Focus Closer | +Values Focus Further

Laser

Laser Source: JPT YDFLP-100-M7-M-R
Lens: F210 / 150x150

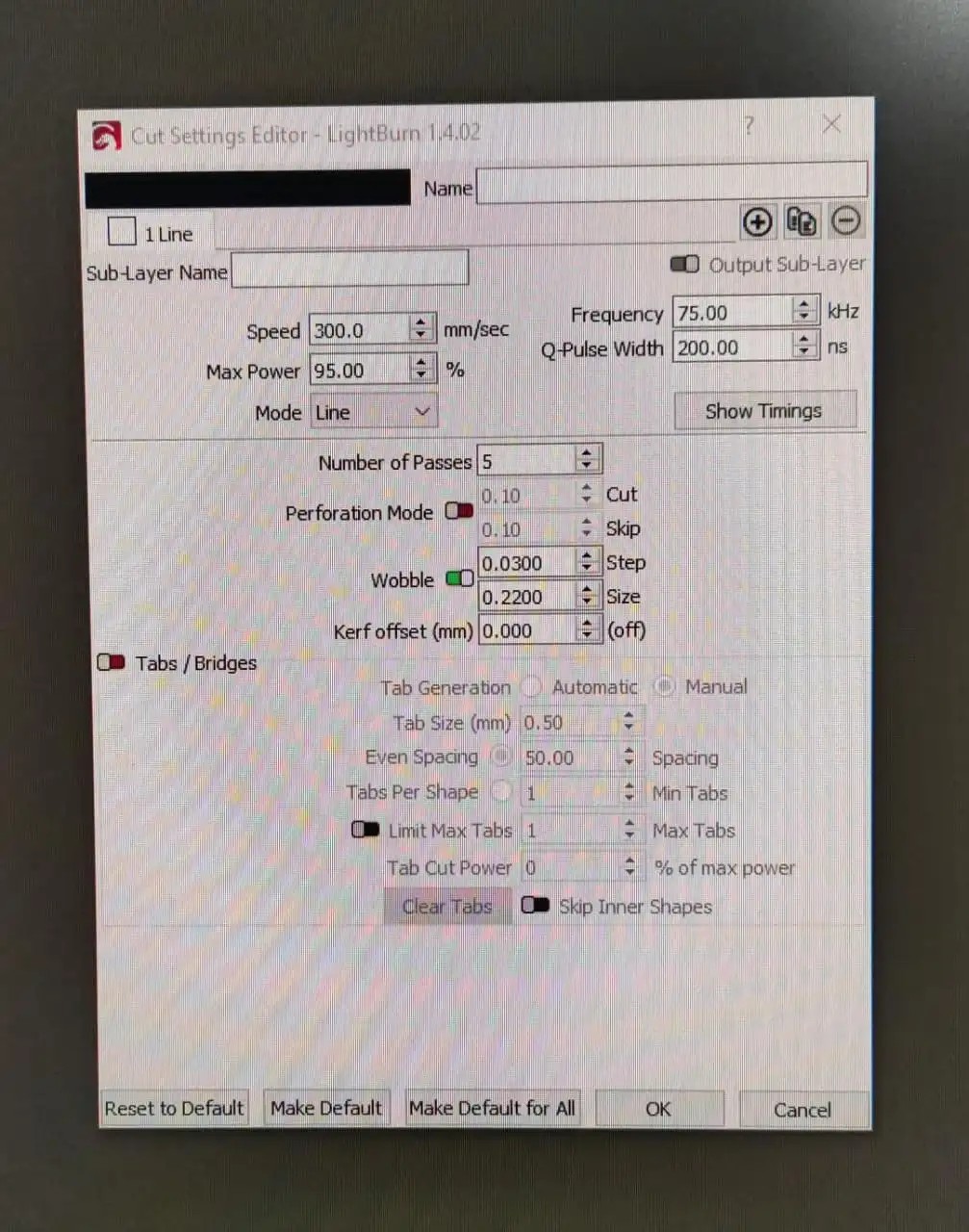

Settings screenshot

Notes

Finalize with Cleaning Hatch: 3,500mm/s / 55% / 200kHz / 200ns / 0.025mm Interval / CrossHatch On / 45 Deg

Line passes

Silver Cut

Speed (mm/s): 300
Power (%): 95
Frequency (kHz): 75
Pulse Width (ns): 200
Passes: 5
Size (mm): 0.22
Step (mm): 0.03
Wobble Mode: Enabled
Perforation Mode: Disabled
Air Assist: Disabled
