CO2 Gantry SETTING

1/8" MDF cutting

Shared by Vinny

Result Photo

Result for 1/8" MDF cutting

Material

Material: MDF
Coating: None
Color: Brown
Thickness: 3.16 mm

Setup

Software: LightBurn
Repeat All: 1
Focus (mm): 0-Values Focus Closer | +Values Focus Further

Laser

Laser Source: JK ECO2 GSI HLC80B
Lens Configuration: Single SL1
Lens: 101.6

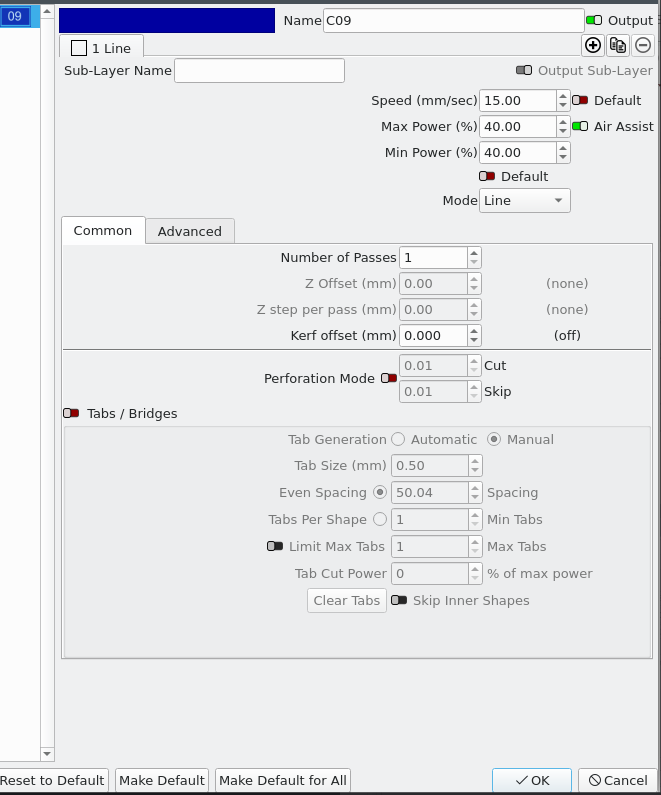

Settings screenshot

Notes

I use air assist at about 20-25 psi from shop air. Water separator on the regulator.

Line passes

MDF Cut

Speed (mm/s): 15
Power (%): 40
Passes: 1
Perforation Mode: Disabled
Air Assist: Enabled
